6 Dog with Roofrack and jerrycan

6 Dog with Roofrack and jerrycan - Trailers - Commercial Trailers

$6 Dog with Roofrack and jerrycan$

Front left view open

Back left view closed

Back left view open

Back right view open

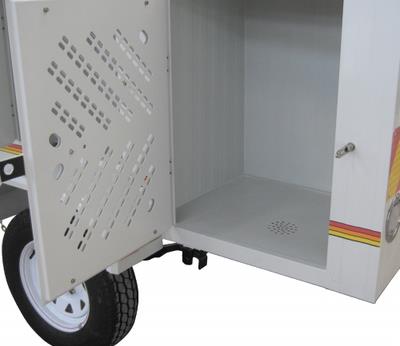

Easy access door opening

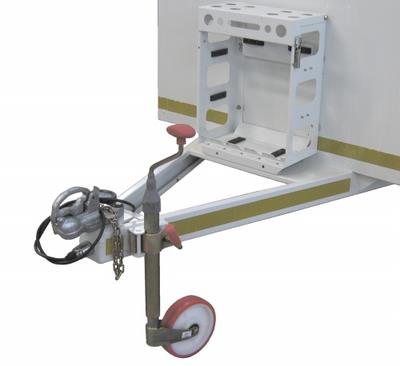

Coupler and jockey wheel

Jerrycan and holder

Numerplate holder and lights

Roof vents detail

Price: POA

Select your region for transport:

Add to Quotation

Back to Commercial Trailers

Back to Trailers

Features

• Perfectly balanced, yet light weight and durable.
• Body constructed from 0.9 mm corrosion resistant rigidised electro galvanized sheet steel.
• Dogs are separated by partitions.
• Each compartment is fitted with a mesh hole for cleaning.
• Six doors that are pad-lockable.
• Six adjustable sliding doors to protect the animal from wind, sun and rain.
• Sides are strengthened by formed top-hat sections which prevents drumming and vibration.
• Multi-function LED lights
• Weather-proof sprung roof-mounted air vents (trailer can be supplied without roof vents)
• Pad-lockable front mounted spare wheel bracket
• Steel number plate mounting panel
• Robust number plate light
• Adjustable jockey wheel
• Coated cast alloy door hinges
• Including spare wheel 165x13inch
• Steel roof rack (2124x999x380mm) with clearance for opening roof vents

Dimensions
A	Height (over all)	1510 mm
B	Height (side)	1040 mm
C	Length (body)	2400 mm
D	Length (over all)	3490 mm
E	Width (inside)	1170 mm
F	Width (over all)	1645 mm
G	Ground Clearance	255 mm

Technical Info
Tare Mass	300 kg
GVM	700 kg
Pay Load	400 kg
Brakes	No brakes
Axle Length	1450 mm
Axle Capacity	750 kg
Leaf Springs	6 Blade 36 inch
Wheels	165 x 13 inch

Subject to our general terms and conditions of supply and delivery. Technical data, pricing, dimensions, and weights are subject to change, due to a policy of continual product development. The illustrations are for reference only. Dimensions are in millimetres. Venter Trailers reserves the right to alter design and specifications without prior notice.
