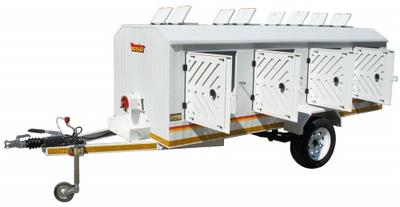

8 Dog Trailer (braked)

8 Dog Trailer (braked) - Trailers - Commercial Trailers

Back view closed

Back view open

Front view open

Air vents with mesh

Door closed

Door open

Door vents closed

Door vents open

Dog compartment

LED multi-function light

Spare wheel bracket without wheel

Spare wheel bracket

Price: POA

Price quoted Ex. Factory, Including spare wheel 165x13 inch
please enquire about transport costs

Select your region for transport:

Add to Quotation

Back to Commercial Trailers

Back to Trailers

Features

• Perfectly balanced, yet light weight and durable.
• Body constructed from 0.9 mm corrosion resistant rigidised electro galvanized sheet steel.
• Dogs are seperated by partitions.
• Each compartment is fitted with a mesh hole for cleaning.
• Eight doors that are pad-lockable.
• Eight adjustable sliding doors to protect the animal from wind, sun and rain.
• Sides are strengthened by formed top-hat sections which prevents drumming and vibration.
• Multi-fucntion LED lights
• Weather-proof sprung roof-mounted air vents (trailer can be supplied without roof vents)
• Pad-lockable front mounted spare wheel bracket
• Steel numberplate mounting panel
• Robust numberplate light
• Ajustable jockey wheel
• Coated cast alloy door hinges
• Including spare wheel 195x14inch

Dimensions
A	Height (over all)	1530 mm
B	Height (side)	1040 mm
C	Length (body)	3190 mm
D	Length (over all)	4180 mm
E	Width (inside)	1175 mm
F	Width (over all)	1645 mm
G	Ground Clearance	255 mm

Technical Info
Tare Mass	420 kg
GVM	750 kg
Pay Load	330 kg
Brakes	With brakes
Axle Length	1450 mm
Axle Capacity	1250 kg
Leaf Springs	8 Blade
Wheels	195 x 14 inch

Subject to our general terms and conditions of supply and delivery. Technical data, pricing, dimensions, and weights are subject to change, due to a policy of continual product development. The illustrations are for reference only. Dimensions are in millimetres. Venter Trailers reserves the right to alter design and specifications without prior notice.
