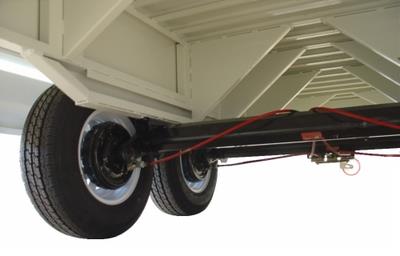

Tandem axles

Vertical corner support

Vertical corner support removed

Vertical centre support

Vertical centre support removed

Price: POA

Select your region for transport:

Add to Quotation

Back to Commercial Trailers

Back to Trailers

Flatdeck 3.0m dropsides

This heavy-duty trailer is ideal for the transport of heavy items, in agricultural and industrial sectors.

Features

• Dropsides on three sides
• Dropside vertical support are removable for easy access
• Heavy-duty dropside hinges
• Tandem axles each with 2000kg load capacity
• Brakes assisted by additional booster
• Five stud 14 inch wheels
• Spare wheel bracket front mounted on A-frame
• Heavy-duty Alko coupler with handbrake
• Multi-function LED lights
• Numberplate holder and light
• Strengthened floor for loads
• Toggle catches on all side supports
• 8 inch adjustable jockey wheel

Dimensions
A	Height (over all)	1400 mm
B	Height (side)	600 mm
C	Length (body)	3620 mm
D	Length (over all)	5220 mm
E	Width (inside)	1925 mm
F	Width (over all)	2125 mm
G	Ground Clearance	300 mm

Technical Info
Tare Mass	800 kg
GVM	2800 kg
Pay Load	2000 kg
Brakes	Run-in and booster
Axle Length	1600 mm
Axle Capacity	2 x 2000 kg
Leaf Springs	Rubber suspension
Wheels	195 x 14 inch

Subject to our general terms and conditions of supply and delivery. Technical data, pricing, dimensions, and weights are subject to change, due to a policy of continual product development. The illustrations are for reference only. Dimensions are in millimetres. Venter Trailers reserves the right to alter design and specifications without prior notice.
