Model C Workshop 3/4 ton (braked)

Model C Workshop 3/4 ton (braked)
	Trailers	Dealers	Contact

Model C Workshop 3/4 ton (braked)

Model C Workshop 3/4 ton (braked) - Trailers - Commercial Trailers

Back view closed

Back view open

Back view door open

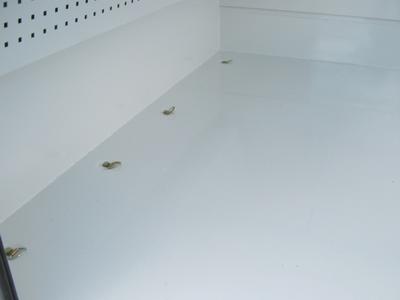

Floor-mounted tie-down lugs

Pad-lockable back door handle

Pad-lockable side panel handle

Aluminium side panel handle

Numberplate light

LED multi-function light

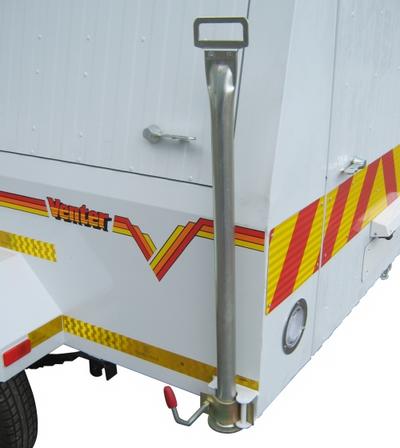

Adjustable support leg

Adjustable jockey wheel

Heavy duty coupler

Price: POA

Price quoted Ex. Factory, including spare wheel 195x14 inch
please enquire about transport costs

Select your region for transport:

Add to Quotation

Back to Commercial Trailers

Back to Trailers

This workshop trailer is robust, easy to tow and has a generous storage capacity. It has a number of distinctive features that make it suitable for various trades and installation industries.

Features

• The sturdily constructed body and floor, (from 0.9mm sheet steel) are corrosion resistant by means of electro-galvanising. (Channels and seams are rust protected with wax).
• Two gas lift-assisted side flaps that are pad-lockable.
• Fold-down side flaps can be used as work surfaces
• Side flaps (height) 410 mm, side flaps (width) 1870 mm
• Multi-function LED lights
• Height adjustable 8 inch Polyurethane and Polypropylene Jockey wheel with double bearings and 500kg load capacity
• Pad-lockable spare wheel bracket
• Optional spare wheel
• 8 off floor-mounted tie-down rings
• Heavy-duty adjustable support legs
• Heavy-duty coupler
• Built-in perforated panel tool rack
• Doors are lockable, dust and waterproof
• Lockable coupler and handbrake chain are fitted
• Including spare wheel 195x14 inch

Dimensions
A	Height (over all)	1875 mm
B	Height (side)	1210 mm
C	Length (body)	2125 mm
D	Length (over all)	2475 mm
E	Width (inside)	1530 mm
F	Width (over all)	2000 mm
G	Ground Clearance	215 mm

Technical Info
Tare Mass	420 kg
GVM	1100 kg
Pay Load	680 kg
Brakes	Run - in
Axle Length	1830 mm
Axle Capacity	1250 kg
Leaf Springs	10 Blade 36 inch
Wheels	195 x14 inch

Doors
Door (rear - height)	970 mm
Door (rear - width)	850 mm

Subject to our general terms and conditions of supply and delivery. Technical data, pricing, dimensions, and weights are subject to change, due to a policy of continual product development. The illustrations are for reference only. Dimensions are in millimetres. Venter Trailers reserves the right to alter design and specifications without prior notice.
