Two Berth Horse Box

Two Berth Horse Box
	Trailers	Dealers	Contact

Two Berth Horse Box

Two Berth Horse Box - Trailers - Sport Trailers

Back left view

Back left view open

Padded lockable rear panels

back

Beds folded up

Beds folded down

Adjustable breast bar and dividers

Inside back door lock

Close-up of back door lock

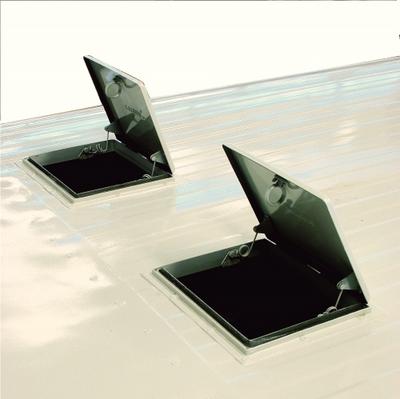

Roof air vents

Front window safety grid

Sliding door window

Jerry can holder

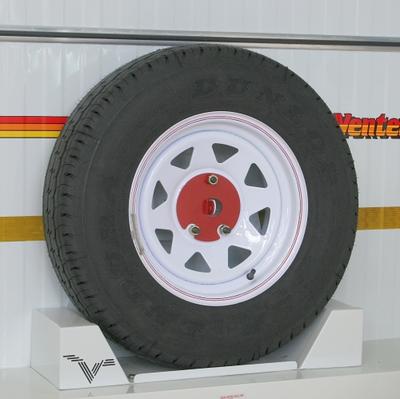

Spare wheel holder

Rear door with hinges

Tether ring

Galvanised coupler and jockey wheel

Opening top stable doors

Reaching for back stable doors

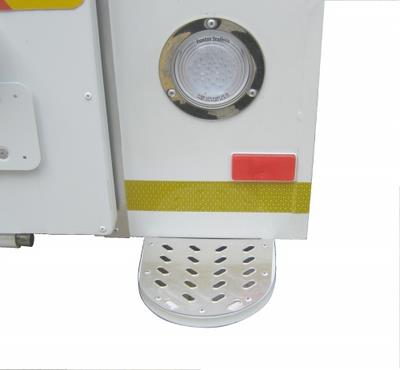

Rear step

Back ramp gas lift

Grab handle for reaching back door handle

Opening back ramp

Ramp open

Rubber flooring on ramp

Storage cabinets and seat (from May 2015)

Storage cabinets open (from May 2015)

Storage cabinets with seat (from May 2015)

Rear stable doors bolt

Removable rear stable doors

Price: POA

Price quoted Ex. Factory, Including spare wheel 195x14 inch
please enquire about transport costs

Select your region for transport:

Add to Quotation

Back to Sport Trailers

Back to Trailers

This trend setting vehicle is aesthetic, modern, aerodynamic and glides like a dream.

Features

• Front nose sports a new streamlined shape reducing wind resistance
• Improved ramp, fitted with double gaslifts and push-down foot pedal, for easier opening
• Portable LED light, with hook and magnet
• Jerry can holder
• Large lockable rear door fitted above ramp, opening 270 deg
• Robust chassis, A-Frame and floor plates
• Three large windows, middle one protected by a sheet steel screen, two outside windows are fitted with open/close sliding facility
• Two air vents fitted on the roof of the trailer
• Lockable, easily accessible spare wheel holder, fitted on top of modern improved mudguards
• Double jockey wheel 200mm dia
• Heavy duty rubber floor mats
• All doors and ramp have padlockable facilities
• Alko-Trailco coupler and axles
• Partition between horses of modern designed perforated steel screen, allowing horses to see each other and gain confidence
• Left and right insides of padded vinyl covered panels, fitted with fold-away beds
• Adjustable padded breast bars and rear padded panels to ensure safety of horses in transit
• Front storage compartment for fodder, grooming bags etc
• Body constructed from corrosion resistant rigidised zinc galvanised or
Electro-galvanised steel, prime coated and quality white final paint is applied
• Convenient front door for groom
• Including spare wheel 195x14 inch
• The trailer has a design registration No. F2004/0491, since 15 April 2004. Copyright also applies in respect of the trailer.

Dimensions
A	Height (over all)	2730 mm
C	Length (body)	3370 mm
D	Length (over all)	4695 mm
E	Width (inside)	1620 mm
F	Width (over all)	2250 mm
G	Ground Clearance	310 mm
B	Height (body)	2160 mm

Technical Info
Tare Mass	1180 kg
GVM	2800 kg
Pay Load	1620 kg
Brakes	Run-in brakes
Axle Length	2060 mm
Axle Capacity	1800 kg x 2
Leaf Springs	Rubber suspension
Wheels	195 x 14 inch

Doors
Ramp (rear - height)	1450 mm
Ramp (rear - width)	1690 mm
Door (front - height)	1900 mm
Door (front - width)	675 mm
Door (side - height)	1900 mm

Optional Equipment
Spray Can Venter White R 0 (Incl.VAT)

Subject to our general terms and conditions of supply and delivery. Technical data, pricing, dimensions, and weights are subject to change, due to a policy of continual product development. The illustrations are for reference only. Dimensions are in millimetres. Venter Trailers reserves the right to alter design and specifications without prior notice.
