Offroader Braked - Trailers - Offroad 4x4

Back left view closed

front left view open

Back left view open

Back view open

Front right view open

Back right view open

Toolbox and wheel with dust cap

Lockable water tank filler cap

Nosecone open

Coupler and jockey wheel

Aluminium lid handles

Steel roofrack with table compartment

Optional gas stove in cabinet

Optional washing table

Optional water tank

Brass water outlet

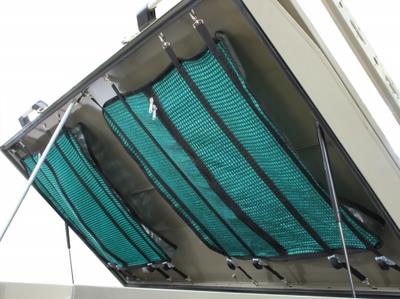

Optional lid net bags

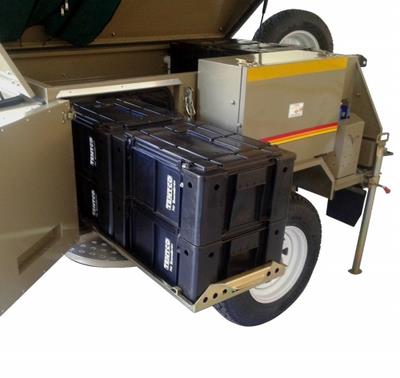

Side drawout rack with optional ammo boxes

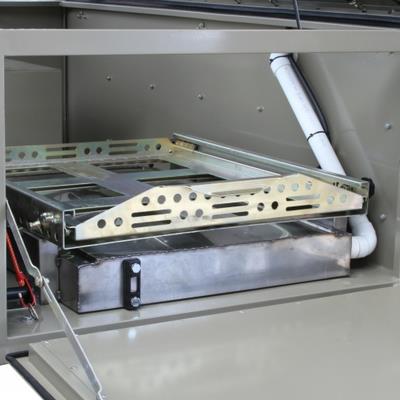

Wider drawout rack for ammo boxes optional

Washing table rollers for wider rack

Price: POA

Price quoted Ex. Factory,
please enquire about transport costs

Select your region for transport:

Add to Quotation

Back to Offroad 4x4

Back to Trailers

The Offroader is the largest in the range and comes standard with brakes and heavy-duty coupler. The version with extra features is designed for serious outdoor adventurers. This trailer has much to offer, especially with the additional extra features.

Features

Offroader Braked With Extended Standard Features

see Extended Standard Features with this link

• Rear drawout rack for ammo boxes 900mm x 1130mm
• Side drawout rack for ammo boxes 455mm x 1075mm
• Washing table nylon storage rollers and two elastic bungee cords
• Lockable water tank filler cap
• Stainless steel washing table mounting brackets
• Zinc galvanised coupler 'Sigma Autoreverse type'
• Two pad-lockable jerry can holders
• One heavy duty roof rack with table compartment able to carry a large tent
• Two pad-lockable enclosures (equipment or tool box)
• Two extending supporting back stays and one jockey wheel to provide levelling and stability when parked on uneven ground
• 15 inch 6 stud rims with 215 Trakgrip tyres for rough terrain
• One spare wheel
• Epoxy coated in white, beige or green, manufactured from quality zinc galvanised sheet steel
• 4 ring holders to tighten luggage
• Adjustable jockey wheel
• Axle capacity 1800kg
• 2 Gabriel shock absorbers
• 12 blade 36 inch leaf springs
• Lockable tailgate that serves as a table top
• Multi-function LED lights
• 1 x pad-lockable toolbox/electrical box with caravan plug
• Swing-out spare wheel attachment with maintenance free vesconite bushes
• Large new nosecone with 4 tie-down rings able to house an 80 litre fridge, accessible from the front, with spring assisted flap for access to fridge controls

Optional Equipment

see Optional Equipment with this link

• Tent with ladder for two to four adults (tent fitted if bought with trailer)
• Gas stove kitchen unit with spice rack
• Lid Netbag storage

Dimensions
A	Height (over all)	1570 mm
B	Height (side)	800 mm
C	Length (body)	2100 mm
D	Length (over all)	3800 mm
E	Width (inside)	1100 mm
F	Width (over all)	1780 mm
G	Ground Clearance	330 mm
I	Length (nose-cone)	670 mm

Technical Info
Tare Mass	500 kg
GVM	1530 kg
Pay Load	1030 kg
Brakes	Run-in
Axle Length	1500 mm
Axle Capacity	1800 kg
Leaf Springs	12 Blade 36 inch
Wheels	215 x 15 inch

Doors
Door (rear - height)	560 mm
Door (rear - width)	1020 mm
Door (side - height)	540 mm
Door (side - width)	650 mm

Optional Equipment
Dish-washing table (stainless steel) R 0 (Incl.VAT)	Draw Out Unit for Fridge R 0 (Incl.VAT)
Gas Bottle Holder R 0 (Incl.VAT)	Lid Netbag R 0 (Incl.VAT)
Plastic Container (large) 600x400x315 R 0 (Incl.VAT)	Plastic Container (medium) 400x300x315 R 0 (Incl.VAT)
Rear draw-out rack R 0 (Incl.VAT)	Spray Can Venter White R 0 (Incl.VAT)
Tent for Bushbaby and Offroader R 0 (Incl.VAT)	Trailer kitchen including 2 plate gas stove and spice rack R 0 (Incl.VAT)

Subject to our general terms and conditions of supply and delivery. Technical data, pricing, dimensions, and weights are subject to change, due to a policy of continual product development. The illustrations are for reference only. Dimensions are in millimetres. Venter Trailers reserves the right to alter design and specifications without prior notice.
