Royal Horse Box

Royal Horse Box - Trailers - Sport Trailers

Back left view closed

Front right view open

Front right view closed

back

Back left view open

Front view open

Back view open

Beds folded up

Adjustable breast bar and dividers

Beds folded down

Close-up of back door lock

Front door lock

Front right sliding window

Roof air vents

Jerrycan holder

Spare wheel holder

Grab handle for reaching back door handle

Robust back door hinges

Back door hinge detail

Opening rear stable door

Reaching for rear stable door

Step and light

Back ramp gas lift

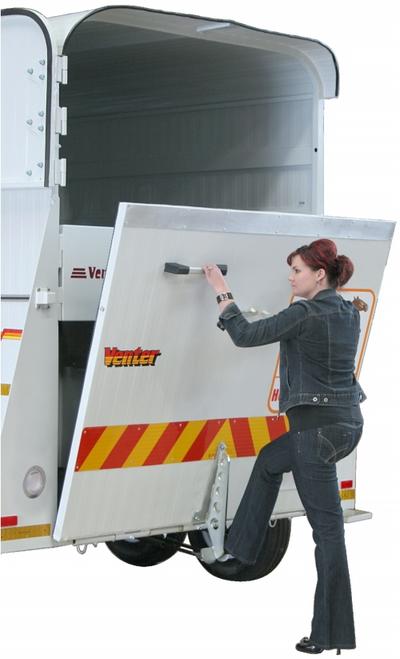

Opening back ramp

Ramp open

Rubber floor on ramp

Stainless steel footplate structure

Tethering ring

Back doors closed

Removable rear stable doors

Rear stable doors bolt

Spare wheel holder

Side ramp gas assisted pedal

Rear ramp gas lift assisted pedal

Coupler and jockey wheel

Price: POA

Price quoted Ex. Factory,
please enquire about transport costs

Select your region for transport:

Add to Quotation

Back to Sport Trailers

Back to Trailers

This top of the range trailer has many features that put it a class of it's own.

Features

• Front nose sports a new streamlined shape reducing wind resistance
• Improved ramp, fitted with double gaslifts and push-down foot pedal, for easier opening
• Portable LED light, with hook and magnet
• Jerry can holder
• Large lockable rear door fitted above ramp, opening 270 deg
• Robust chassis, A-Frame and floor plates
• Three large windows, middle one protected by a sheet steel screen, two outside windows are fitted with open/close sliding facility
• Two air vents fitted on the roof of the trailer
• Lockable, easily accessible spare wheel holder, fitted on top of modern improved mudguards
• Spare wheel 195 x 14 inch
• Double jockey wheel 200mm dia
• Heavy duty rubber floor mats
• All doors have stainless steel bullet hinges and ramp has padlockable facilities
• Removable rear stable doors
• Alko-Trailco coupler and axles
• Partition between horses of modern designed perforated steel screen, allowing horses to see each other and gain confidence
• Left and right insides of padded vinyl covered panels, fitted with fold-away beds
• Adjustable padded breast bars and rear padded panels to ensure safety of horses in transit
• Front seat with storage compartment
• Body constructed from corrosion resistant rigidised zinc galvanised or
Electro-galvanised steel, prime coated and quality white final paint is applied
• Convenient front door for groom
• Stainless steel tether ring for horses
• Stainless steel structure for foot plates
• The trailer has a design registration No. F2004/0491, since 15 April 2004. Copyright also applies in respect of the trailer.

Dimensions
A	Height (over all)	2900 mm
C	Length (body)	3825 mm
D	Length (over all)	5000 mm
E	Width (inside)	1730 mm
F	Width (over all)	2380 mm
G	Ground Clearance	310 mm
B	Height (body)	2300 mm

Technical Info
Tare Mass	1240 kg
GVM	3200 kg
Pay Load	1960 kg
Brakes	Run-in brakes
Axle Length	2165 mm
Axle Capacity	1800 kg x 2
Leaf Springs	Rubber suspension
Wheels	195 x 14 inch

Doors
Ramp (rear - height)	1450 mm
Ramp (rear - width)	1805 mm
Ramp (front - height)	2175 mm
Ramp (front - width)	1060 mm
Door (front - height)	1900 mm
Door (front - width)	650 mm

Subject to our general terms and conditions of supply and delivery. Technical data, pricing, dimensions, and weights are subject to change, due to a policy of continual product development. The illustrations are for reference only. Dimensions are in millimetres. Venter Trailers reserves the right to alter design and specifications without prior notice.
