Savuti XL with tent

Savuti XL with tent - Trailers - Offroad 4x4

Savuti XL with tent

Back view closed

Front left view open

Back left view open

Front right view open

Back view open

Back tailgate open

Jerrycan holder

LED light detail

New toggle catch detail

Nosecone closed

Nosecone handle

Nosecone open

Nosecone gas lifts

Lid gas lifts

Side door closed

Side door open

Support legs down

Table compartment detail

Wheel with dust cap

Optional wider drawout rack for ammo boxes

Optional side drawout rack with ammo boxes

Price: POA
Select your region for transport:
Add to Quotation
Back to Offroad 4x4
Back to Trailers

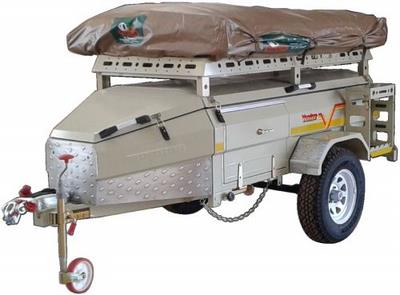

Savuti-XL with tent

The new Savuti-XL, is a quality eye-catching offroad trailer that is well designed to provide a more compact, yet spacious outdoor experience. A key feature is the new heavy-duty articulating coupler, essential for rough terrain, plus the 14 inch 'trak-grip' tyres that provide a true offroad capability.


• Zinc-galvanised steel body, epoxy powder coated, colour beige
• A deep body of 590 mm for those larger items.
• Four extension legs providing stability on uneven ground
• A robust roof rack provides for carrying large items externally, such as tent, includes a table compartment
• The trailer is fitted with a large nosecone, with gas lift assisted lid, mounted on the front A-Frame
• Aluminium handle on trailer lid and nosecone lid
• Plastic handle toggle catch on trailer lid and nosecone lid
• A two-person tent attached onto the roof rack
• Two jerry-can containers mounted on the rear sides of the trailer
• A wide rear tailgate for access to the trailer interior, without lifting trailer lid
• A side door for access to drawout rack
• A gas lift assisted trailer lid allowing for access to the trailer interior, even with the tent attached
• 8 inch adjustable jockey wheel
• 36 inch 8 blade leaf springs
• 8 ring holders for securing luggage inside
• Forged Alko pivoting coupler, allowing full lateral and vertical articulation between towing vehicle and trailer
• Strong construction using 30% more steel than standard trailers allowing for 4x4 conditions
• Long-life 1250kg axle, numberplate twin light, multi-function LED lights
• Trakgrip steel-belt light truck/recreational radial-ply tyres with a multipurpose pattern for on-and off-road use. The SP Trakgrip offers excellent off-road traction, braking and manoeuvrability in wet or dry conditions.
These tyres have excellent high-speed steering ability plus high levels of comfort, ride refinement, low noise characteristics and improved straight-line performance in highway applications.
• Spare wheel also Trakgrip.

Optional Equipment

• Rear tailgate draw-out rack 610mm x 830mm
• A stainless steel watertank with large tray (1030x825x70) on top, and gas bottle holder
• Side-drawout rack (490mm x 990mm)for housing an Engel 15 litre fridge/freezer (Model No: MT17F), or optional storage containers
• Optional side drawout rack for ammo boxes 455mm x 1075mm

AHeight (over all)1580 mm
BHeight (side)1150 mm
CLength (body)2110 mm
DLength (over all)3225 mm
EWidth (inside)1135 mm
FWidth (over all)1585 mm
GGround Clearance270 mm
ILength (nose-cone)650 mm
HHeight (body)625 mm

Technical Info
Tare Mass380 kg
GVM750 kg
Pay Load370 kg
Axle Length1400 mm
Axle Capacity1250 kg
Leaf Springs8 Blade 36 inch
Wheels205 x 14 inch Trakgrip

Door (rear - height)400 mm
Door (rear - width)620 mm (J)
Door (side - height)400 mm
Door (side - width)600 mm
Optional Equipment

Drawout Rack for Fridge, side door mounted
R 0 (Incl.VAT)

Savuti Drawout rack
R 0 (Incl.VAT)

Stainless steel water tank with tray
R 0 (Incl.VAT)
Subject to our general terms and conditions of supply and delivery. Technical data, pricing, dimensions, and weights are subject to change, due to a policy of continual product development. The illustrations are for reference only. Dimensions are in millimetres. Venter Trailers reserves the right to alter design and specifications without prior notice.
