Single Bike trailer

Single Bike trailer - Trailers - Sport Trailers

Back left view closed

Back left view open

Front view nosecone open

Front view ramp down

Back view of ramp

Back left view ramp down

Ramp secured with Venterbolt

Venter bolt securing ramp

Coupler and jockey wheel

Handle and padlockable latch

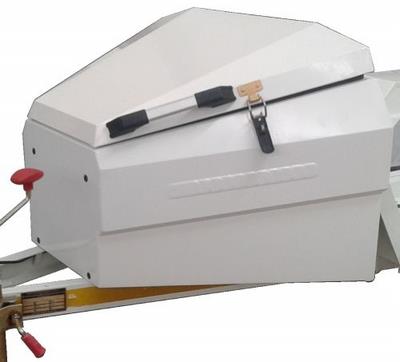

Large nosecone closed

Nosecone lid gaslift assistedopen

Leg support clamp and tie-down lugs

Bike front wheel clamp open

Bike front wheel clamp closed

Wheel detail

Price: POA

Price quoted Ex. Factory, Including spare wheel 165x13 inch
please enquire about transport costs

Select your region for transport:

Add to Quotation

Back to Sport Trailers

Back to Trailers

Single Bike Trailer

Features

• Large padlockable nosecone
• Aluminium handle
• Plastic covered padlockable toggle catch
• Galvanised coupler with locking option
• 6 inch adjustable jockey wheel
• Two adjsutable support legs at the back
• Perforated trailer bed for grip and drainage
• Equipped with a handbrake chain
• Robust Bike ramp 2.3 metres long
• Bike ramp stores securely away on trailer floor
• Bike wheel bracket to capture the front wheel
• Rear numberplate and tail light recess
• Including spare wheel 165x13 inch
• Robust tie-down lugs in many positions

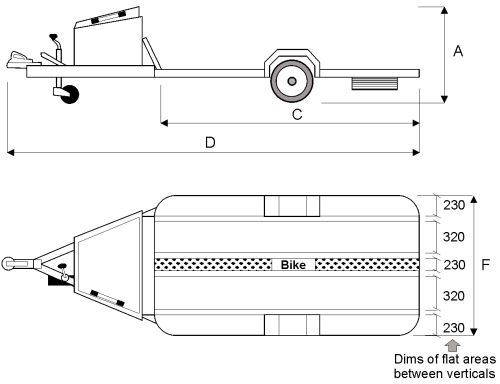

Dimensions
A	Height (over all)	670 mm
B	Height (side)	140 mm
C	Length (body)	2300 mm
D	Length (over all)	3400 mm
E	Width (inside)	1000 mm
F	Width (over all)	1460 mm
G	Ground Clearance	220 mm

Technical Info
Tare Mass	200 kg
GVM	700 kg
Pay Load	500 kg
Brakes	No brakes
Axle Length	1400 mm
Axle Capacity	700 kg
Leaf Springs	6 Blade
Wheels	165x13 inch

Subject to our general terms and conditions of supply and delivery. Technical data, pricing, dimensions, and weights are subject to change, due to a policy of continual product development. The illustrations are for reference only. Dimensions are in millimetres. Venter Trailers reserves the right to alter design and specifications without prior notice.
