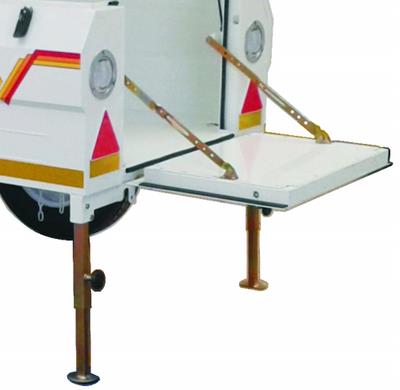

Support legs

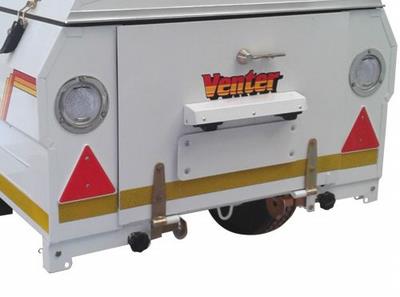

Back panel detail

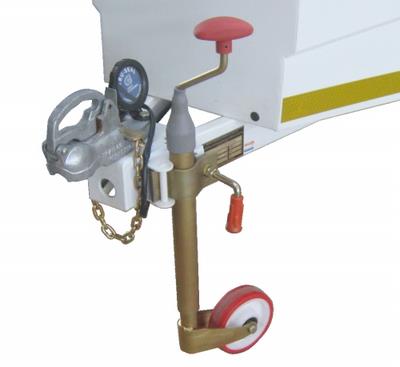

Jockey wheel

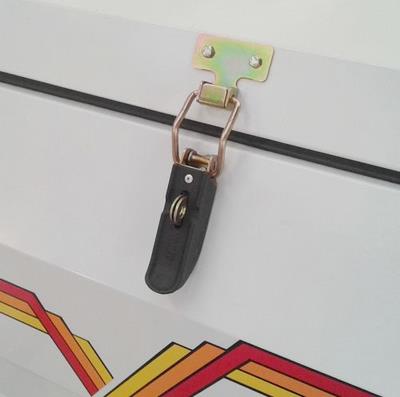

Toggle catch detail

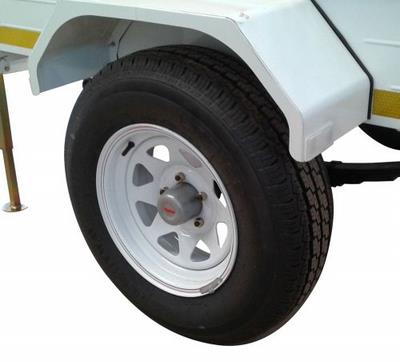

Wheel and dust cap

Price: POA
Select your region for transport:
Add to Quotation
Back to Leisure Trailers
Back to Trailers

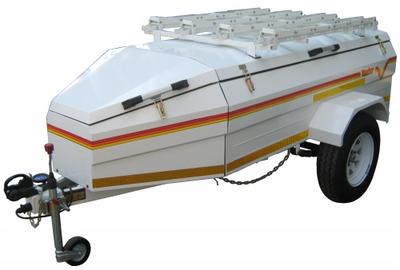

Voyager 14" 6 ft with cycle rack

Voyager is a new series of leisure trailer that sports economy and maximim space utilisation.

The trailer sports a deeper body than standard trailers, allowing for storage of typical camping equipment inside. Access to the interior is very easy with a rear tailgate and a gas-assisted top lid.

Added stability when parked, comes from two extension legs, that neatly tuck away. It features superb space utilisation getting more into less. This trailer has the following:

Features

• A deep body of over 500 mm for those larger items
• Body constructed of zinc galvanised sheet steel
• A large nosecone for additional storage
• 14 inch wheels for rough terrain, plus spare wheel
• Two extension legs providing stability on uneven ground
• A robust cycle rack for carrying four bicycles
• A wide rear tailgate for access to the trailer interior
• A gas lift assisted flip-up trailer lid allowing for easy access to the trailer interior
• 6 inch adjustable jockey wheel
• 36 inch 6 blade leaf springs
• 8 ring holders for securing luggage inside
• Very sturdy coupler
• Strong construction using 30% more steel than standard trailers
• A long life 1250kg axle
• Numberplate twin light fitting
• Aluminium handles
• New multi-function LED light
• New numberplate holder

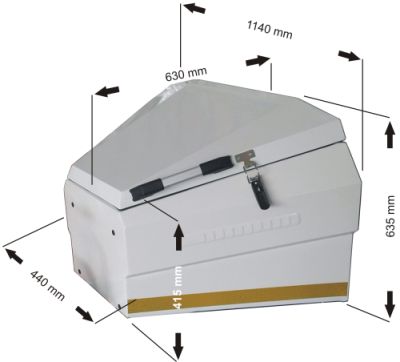

Nosecone Sizes

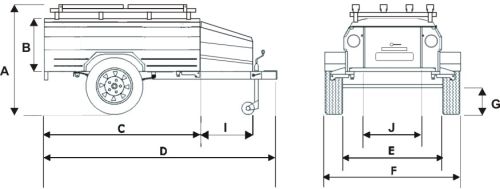

Dimensions
AHeight (over all)1255 mm
BHeight (side)500 mm
CLength (body)1805 mm
DLength (over all)2750 mm
EWidth (inside)1135 mm
FWidth (over all)1575 mm
GGround Clearance460 mm
ILength (nose-cone)650 mm

Technical Info
Tare Mass280 kg
GVM750 kg
Pay Load470 kg
Axle Length1400 mm
Axle Capacity1250 kg
Leaf Springs8 Blade 36 inch
Wheels195 x 14 inch

Doors
Door (rear - height)500 mm
Door (rear - width)620 mm (J)
Optional Equipment


6ft Voyager trailer carpet set
R 0 (Incl.VAT)


Jerrycan holder
R 0 (Incl.VAT)


Rubber Mat for 6ft
R 0 (Incl.VAT)
